Secure 5G Network Enables A Smarter City
Smart city and public services
In July 2021, the Government Services and Data Management Bureau in Pingshan District, Shenzhen, together with China Mobile and Huawei, built the first 5G e-government network in China based on the Huawei Mobile VPN solution. Through this private 5G network, multiple public service departments are able to securely exchange data and deploy smart city services.
Select a project
Contents
Challenge
With the continuous expansion of cities and urban population growth in recent years, city administrations faces major challenges across public services, environmental protection, emergency response, and security management. Municipalities are looking to make greater use of digital solutions to support their staff and provide public services, but conventional wired networks are both expensive to deploy and inflexible. At the same time, usage of Wi-Fi poses potential security risks, such as illegal intrusion, Trojan horse implantation, and internal information leakage, to the entire e-government network.
Solution
China Mobile and Huawei built a 5G e-government private network for the Government Services and Data Management Bureau in,Shenzhen, using the Huawei Mobile VPN solution, this is first 5G e-government private network in China. The partners deployed uplink classifier (ULCL) technology on a 5G edge facility dedicated to e-government services in a data center in Pingshan District. The ULCL technology steers public service flows to the e-government network, physically isolating the traffic from the public Internet. The solution is supporting public service provision, environmental protection, emergency response, and security management, while facilitating measures to combat the Covid-19 pandemic
Impact & Statistics
Huawei says the 5G e-government private network, underpinned by the mobile VPN solution, provides secure access to intranets with a better user experience. This improves work efficiency and reduces the VPN operation duration for network access by 15.3 minutes per person per day, according to the Government Services and Data Management Bureau. As a result, the solution has cut costs, improved security and increased public satisfaction.
Wider Implications
In the wake of the COVID-19 pandemic, people increasingly communicate with each other remotely, for example, through mobile office applications, intranet access, video conferences, and online classes. Huawei believes all of these services could benefit from its Mobile VPN solution. The technology could be used, for example, to support online learning, to assist the government in managing smart cities and to deliver public services to citizens. Other potential applications include data transmission for medical services to improve diagnosis and treatment efficiency, and enabling employees to remotely access enterprise intranets to improve work efficiency.
Stakeholders
The Government Service and Data Management Bureau of Pingshan District of Shenzhen city, China/ China Mobile /Huawei technology co. Ltd
02
Secure 5G Network Enables A Smarter City
The Pingshan District of Shenzhen has used a 5G-enabled VPN to expand e-government services
Cities need to get smarter. With fast growth in urban populations in recent years, city administrations faces major challenges across public services, environmental protection, emergency response and security management. At the same time, the Covid-19 pandemic has made it important to reduce face-to-face contact, particularly in densely-populated urban areas.
To address these challenges, municipalities are looking to make greater use of digital solutions both to support their internal operations and provide public services. But conventional wired networks are expensive to deploy and inflexible, while Wi-Fi can pose security risks, such as illegal intrusion, Trojan horse implantation and internal information leakage, to the entire e-government network.
Virtual private networks (VPNs) are widely used to try and improve security, but they can result in complex authentication, a poor user experience, and security issues, as intranet data has to travel through the Internet. They can also be expensive: to provide remote office services via Wi-Fi or 4G, VPN servers need to be purchased and deployed to enable VPN gateways to establish data tunnels from the Internet to an intranet.
To overcome these challenges, China Mobile and Huawei jointly built a 5G e-government private network for the Government Services and Data Management Bureau in Pingshan District, Shenzhen, using Huawei’s Mobile VPN solution, which harnesses the capabilities of a 5G core network to overcome the disadvantages of a conventional VPN.
The partners deployed uplink classifier (ULCL) technology on a 5G edge compute facility dedicated to e-government services in a data centre in Pingshan District. The ULCL technology steers public service flows to the e-government network, physically isolating the traffic from the public Internet. Located on an edge user plane function (UPF) within a 5G core network, the ULCL technology also removes the need for an individual to use one SIM card for the public Internet and another SIM card to access a private VPN. The ULCL enables a single cloud server to direct traffic to either the public Internet or a private intranet.
Huawei says its Mobile VPN solution can increase downlink network throughput tenfold, compared with conventional VPN solutions, further improving the end-user experience. The new solution, which was implemented in July 2021, “improves the work efficiency and reduces the VPN operation duration for network access by 15.3 minutes per person per day,” says Hu kai, Director of Government Service Data Administration Bureau, Pingshan District, Shenzhen China.
Huawei says its Mobile VPN solution also eliminates the need to purchase and deploy VPN-specific devices and related services. “Compared with conventional VPN solutions, the Mobile VPN solution helps reduce the network construction cost by 15% and network maintenance cost by 20%,” says Richard Liu, president of Huawei cloud core network product line. “Compared with wired networks, such as those based on optical fibres, wireless networks are freed from optical fiber and network cable routing, cutting maintenance costs, reducing the network investment by 30%, and shortening the construction period by half.”
The Government Services and Data Management Bureau has taken multiple other measures to further reduce the risk of intranet data leakage. These include secondary authentication for terminals and encryption for end-to-end data transmission, while different service rights are granted to users by user attribute, and a whitelist is configured to allow specified terminals to access the 5G e-government network.
03
Secure connectivity improves public services
Following the implementation of the new architecture, the Government Services and Data Management Bureau has scaled up its smart city applications: Integrated self-service terminals for public services have been deployed within communities, giving residents convenient access to services, such as handling social insurance affairs, instead of going to a particular public service hall. As a result, city officials say they have seen “a tremendous improvement in service satisfaction.”
Moreover, a national health information platform has been deployed in the Pingshan District to help combat the pandemic, by supporting preventative measures, such as COVID-19 testing, epidemiologic investigation, and the tracking of close contacts within two hours.

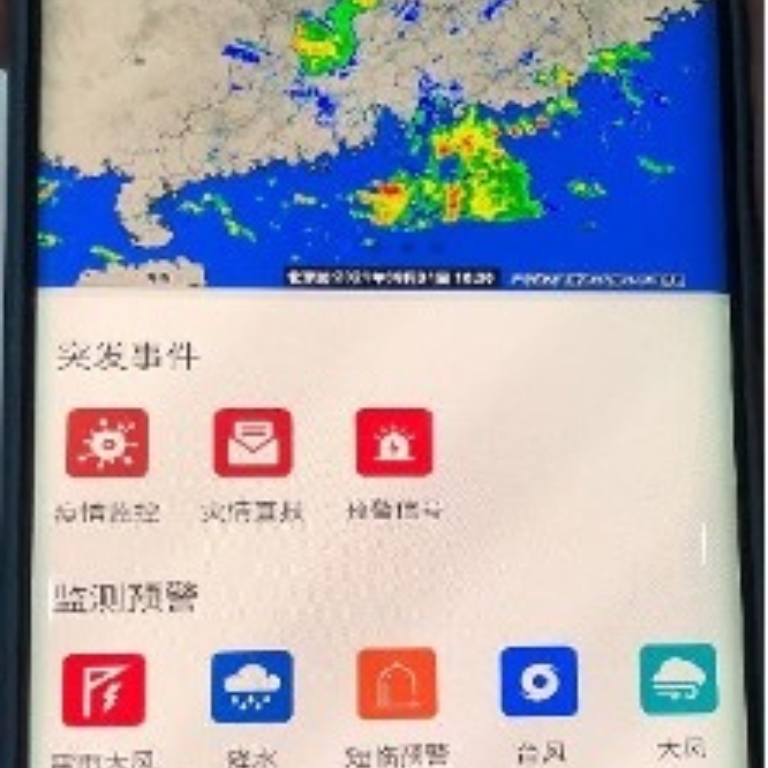

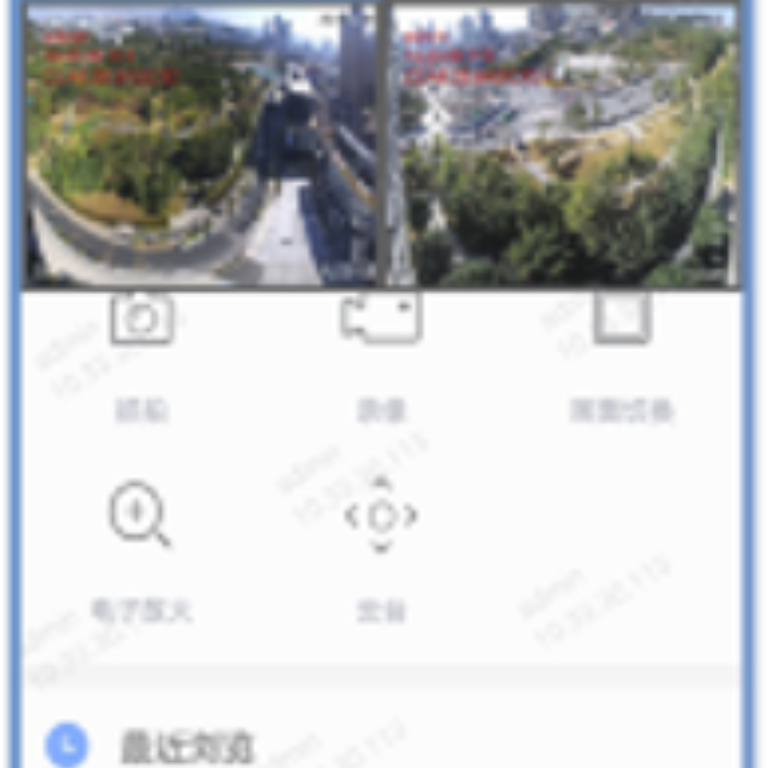

Furthermore, the city administration has deployed information collection and real-time video monitoring systems in more than 500 high-risk places (such as urban waterlogging areas and dangerous buildings) in Shenzhen to improve public safety. Shenzhen city is a mountainous area, there are risks of landslides during the rainy season, landslide risks can only be identified through manual inspection in the past, according to the news, a landslide occurred at Shenzhen on 20 December 2015, it destroyed and buried buildings and worker living quarters in the nearby industrial park, the death toll was 73, with 4 people reported missing. The government of Pinshan district built a monitoring system through 5G e-government private network, which covers 129 geological disasters, 121 key flood control locations, this system can monitor dangerous areas in real time 24 hours a day, the local government can release an hour's forecast in advance, the number of fatalities in landslide accidents in Shenzhen has been zero since 2021. Meanwhile, a new gas pollution and water quality monitoring network is tracking real-time gas and water quality, the air quality index of Shenzhen is excellent. and 5G-connected drones are being deployed to promptly detect fires.
Following the deployment of the Mobile VPN solution, the city is also now able to provide mobile office services for government employees through the office automation system. Municipal workers can now securely access enterprise intranets anytime and anywhere, improving productivity.
04
Delivering better connectivity across the public sector
Huawei anticipates its Mobile VPN solution will improve efficiency and productivity across the economy
By enabling remote users to access internal networks as easily and securely as if they were on-premise. Huawei says its Mobile VPN solution is now being used by more than 500 organisations, including educational institutions, public services, healthcare clinics and enterprises within China. For example, Guangdong University of Foreign Studies is using the Mobile VPN solution and a new 5G core network to provide a dedicated and direct connection from students’ and teachers’ devices to the campus intranet.
“Mobile VPN is faster and more secure, it can meet user's requirement to securely access the internet and campus intranet at same time,” says Richard Liu, president of Huawei cloud core network product line. “In respect to public services, Mobile VPN provides secure and reliable connections to the intranets that need to process diverse, enormous amounts of service data. As regards to medical services, Mobile VPN enables mobile terminals to collect huge volumes of data and send this back to hospital intranets in real time, greatly improving a patient's treatment efficiency. As for remote offices, Mobile VPN enables people to access both the Internet and intranet with lower network latency and higher network speeds, greatly improving work efficiency.”
As it looks to deploy the solution outside China, Huawei says it is adding the intelligent traffic distribution capability of the ULCL technology on to 4G networks to enable 4G operators to also offer mobile VPN services. “As 4G is still the mainstream in some regions, Huawei’s fully convergent core network will apply 5G technologies to 4G networks,” says Richard Liu, president of Huawei cloud core network product line. “This makes the ULCL–based traffic steering possible on a 4G network, which means that Mobile VPN is compatible on a 4G network, opening up its services to more users.”
