Networks have become pervasive and ubiquitous in everyday life. It is hard to imagine, especially in the developed nations, what life was like when there was no mobile broadband and services on top. However, this does come at a cost. An important aspect to consider is the energy consumption of the network, where core networks like data centres demand constant temperatures stabilised by either heating or cooling; while radio access networks require electricity to transmit and receive signals.
With 5G expected to drive network densification with its new requirements, demands are expected to increase the energy consumed by the network, albeit at better energy efficiency. It will also mean that carbon emissions will increase, aggravating climate change. Calls for a non-traditional approach where electricity consumption can be done sustainably while reducing the costs of energy are needed. It is for these reasons why NTT DOCOMO developed Green Base Station, an environment-friendly and sustainable energy supply scheme for radio base stations.

The GSM Association (“Association”) makes no representation, warranty or undertaking (express or implied) with respect to and does not accept any responsibility for, and hereby disclaims liability for the accuracy or completeness or timeliness of the information contained in this document.

Executive Summary

NTT DOCOMO have developed Green Base Stations, a non-traditional, environmental-friendly and sustainable energy supply scheme for radio base stations.

Green Base Stations are equipped with photovoltaic (PV) panels, cycle-type Li-ion storage batteries, DC power controllers, and supply generated power to radio equipment with smart power control. They can make use of renewable energy by local PV power generation, therefore can reduce CO2 emission from commercial electric power use. Additionally, in case of a power outage due to disaster, they work longer time by PV power generation rather than relying on backup power alone.

Green Base Stations have been installed since 2013 and a total of 133 stations were installed by March 2018. The company aims to increase PV generation capacity to 2000 kW by 2020. Mobile network operators (MNOs), introducing 5G networks, will increase consumption of electric power for 5G network facilities in the future, and are expected to reduce power consumption both in terms of business and CSR requirements.



1. Introduction

In recent years, global environmental issues have been a concern, and the reduction of CO2 emissions has been called for. The share of renewable energy is also required to increase in SDGs. Mobile networks require a lot of electric power because much network equipment is always in operation, therefore cellular services are one of the major energy consuming industries in many countries. Since the increase in the power consumption of the network equipment due to the future introduction of 5G network may become big issues, the reduction of CO2 emission by power saving and utilisation of renewable energy is more desirable in cellular services.

In Japan, disasters such as earthquakes and typhoons occur and cause a power outage relatively often. In case of a power outage, it is essential for operators to continue communications services as much as possible, which are the important lifelines. The base station is commonly equipped with a backup battery, but the backup capacity is not always sufficient for power outages by some disasters in Japan. Installing more batteries is one simple solution, but it costs a lot. Therefore, a solution that balances network cost and disaster tolerance is desirable.

NTT DOCOMO has been conducting research and development on “Green Base Station” which is an environmentally friendly and disaster-resilient base station. The Green Base Station is equipped with photovoltaic (PV) panels, a cycle-type Li-ion storage battery, and a DC power controller, as described later in detail. The power generated by the PV panels is supplied to the radio equipment, and the surplus generated power can be charged to the battery. By controlling locally generated power, it is possible to improve renewable energy use and disaster resilience.

In NTT DOCOMO, Green Base Stations have been installed since 2013, adding functions to existing base stations, and a total of 133 stations were installed by March 2018 (including types without controller). The company aims to increase PV generation capacity to 2000 kW by 2020.

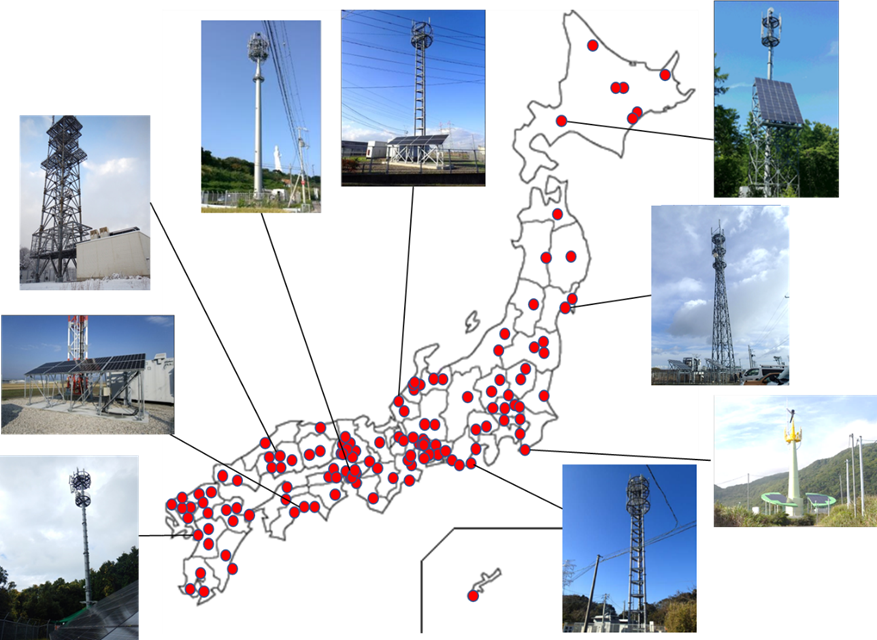

Fig.1 Deployment of NTT DOCOMO’s Green Base Stations in Japan

2. Business Imperative

By maximising locally generated renewable energy use, reduction of commercial power consumption (reducing CO2 emissions and electricity costs), an extension of service operating hours of base stations autonomously in case of a power outage (contribution to BCP), and reduction of on-site operation cost of maintenance personnel due to disasters can be achieved

3. NTT DOCOMO and the Solution

NTT DOCOMO, Japan’s largest telecommunications company, provides innovative, concerned and secure mobile services that enable customers to realise smarter lives. The company services over 73 million customers in Japan via advanced wireless networks, including a nationwide LTE network and one of the world’s most progressive LTE-Advanced networks.

DOCOMO is a world-leading developer of 5G networks, which it plans to deploy in the 2020 s by learning network function virtualisation (NFV) and other technologies. DOCOMO is also driving innovation in NFC infrastructure and services, emerging IoT solutions and many other mobile-related initiatives.

3.1 Green Base Station

In order to maximise renewable energy use and the improvement of disaster resilience, it is desirable to introduce Green Base Stations which are equipped with the following equipment. Those are connected to DC part of a power circuit (power input of radio equipment), in order to supply power to radio equipment even in case of a power outage and to lower AC/DC conversion loss.

  • Photovoltaic (PV) panels: By installing PV panels with a power generating capacity greater than the load on the radio equipment, the radio equipment can be operated without supplying commercial power when sunlight is sufficient, and the excess power can be charged into the battery.
  • Cycle-type Li-ion batteries: Usually, the backup batteries are fully charged at all times and discharge only when there is a power outage (float type). By using a cycle-type Li-ion battery capable of daily charge/discharge, smart power control with a DC power controller can be performed, thereby enabling flexible and efficient power supply to radio equipment adaptively according to the situation. In addition, Li-ion batteries are much smaller in size than widely used lead-acid batteries, since they have higher energy density.
  • DC power controllers: They are used to control the power equipment in the base station by centrally managing various information such as power generation amount and battery status. They have a monitoring function to notify the state of the power equipment to a remote location and a function to respond to control commands from a remote location.

Fig. 2 shows an overview of the testbed system of the Green Base Station at NTT DOCOMO R&D centre, and Fig. 3 shows a photograph of the test bed.

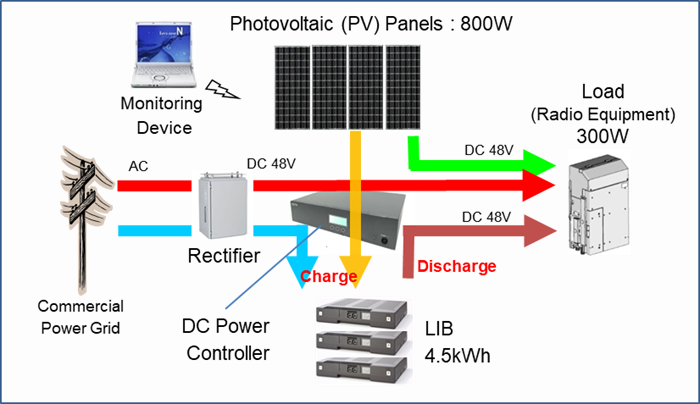

Fig.2  Green Base Station Testbed System Overview

Fig.3  Green Base Station Testbed at NTT DOCOMO R&D Center

3.2 Applying the solution to the mobile network

One of the major aims of Green Base Stations is to maximise the use of renewable energy amount which is locally generated at each station by smart DC power control. The degree of the renewable energy use of a Green Base Station is evaluated. The ratio of the power consumption of the radio equipment by the PV power generation is defined as the “renewable energy rate”. The renewable energy rate was evaluated in the following three patterns.

(1) A method of only providing PV power generation to radio equipment (no surplus utilisation)

(2) A method of making a certain amount of free capacity in a battery and charge it when a surplus of PV power generation occurs

(3) A method of controlling to reduce the disposal of surplus power generation by changing the preset free capacity of the battery in advance according to the weather forecast for the day (weathercast-linked control)

In method 1, generated PV power is provided to the radio equipment, but surplus power generation exceeding the power consumption of the radio equipment is discarded. (The battery is used as a float-type.)

In the method 2, a certain amount of free capacity is made beforehand (presetting to the certain state of charge (SOC), which represents a percentage of the stored electricity of a battery) to charge the surplus power. The preset SOC should be selected to the value maintaining the required backup time. When the PV power generation decreases, the battery discharges and supplies power to the radio equipment, and SOC returns to the preset value. This process can improve the renewable energy rate because the disposal of surplus generation decreases. However, if the preset SOC is constant every day, the surplus power could be discarded on the day when the power generation is large. (A small preset SOC can decrease discards, but if it’s too small the required battery capacity is too large.)

In order to avoid such a situation, in method 3 an appropriate preset SOC is estimated based on the weather forecast of the day, and the renewable energy rate is improved furthermore.

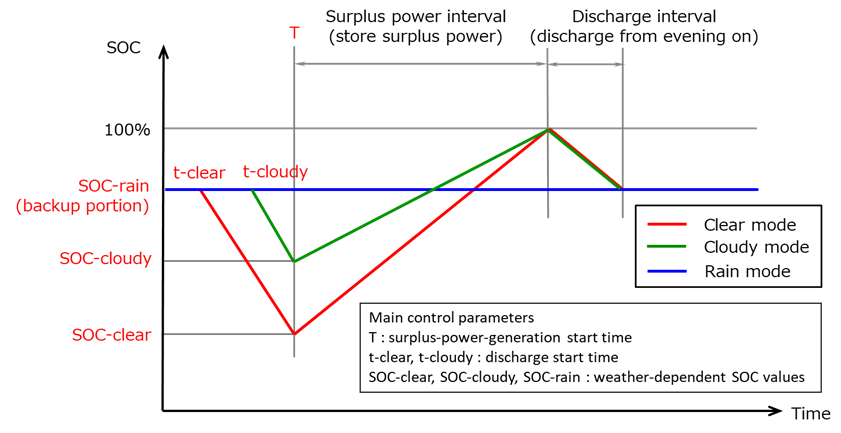

Figure 4 shows how the SOC changes over time depending on the weather in method 3. When the amount of surplus power generation is expected to be large in the forecast of sunny days, the battery discharge to increase the free capacity before PV power generation, to control aiming at the maximum SOC of the day being 100%. (Amount of discharge is decided in the centre server at the other location, and is informed to the DC power controller.) When the forecast is rain, no discharge control occurs. This can improve the renewable energy rate while maintaining the expected backup time.

Fig.4  Overview of Weathercast-Linked Control


The main specifications of the experiment are shown in Table 1.

Elements Data
Latitude North latitude 36 ° 21 ? 25 ? ?
Longitude East latitude 139 ° 14 ? 9 ? ?
Altitude 93 m
PV installation direction Due South
PV installation angle 30°
PV rated power 1.4 kW (233 W x 6)
Load capacity 500 W

Table 1  Experimental Specifications

Table 2 shows the evaluation results of the renewable energy rate for each method. The evaluation test was carried out over about 1 month. By the weathercast-linked control of method 3, the renewable energy rate reached about 40%. This means the method 3 would cut commercial power usage by about 40%, as would CO2 emissions.

Method Renewable Energy Rate
1 22%
2 32%
3 41%

Table 2  Experimental Results

3.3 Key differentiation points of Green Base Station

  • It is equipped with PV panels and can generate electric power from renewable solar energy in order to supply power to the radio equipment in the base station. It can reduce commercial power use, and extend service time in case of a power outage if the sunlight is sufficient.
  • It is equipped with a cycle-type Li-ion storage battery, and the battery is controlled to charge a surplus of PV power generation (power generation exceeding the power consumption of the radio equipment). This can suppress the surplus discard, and the renewable energy rate can be improved. The battery is used not only for backup but also for maximising renewable energy use.
  • By smart power control according to weather forecasts (weathercast-linked control), it is possible to improve the renewable energy rate furthermore.


4. Economic Benefits

Since Green Base Stations can reduce commercial power use, OPEX in electricity rate can be also reduced. In addition, it would be possible to reduce the OPEX of disaster countermeasures.

4.1 Investment rationalisation

Under the same conditions as in the experiment in Chapter 3, commercial power consumption can be reduced by up to about 40%, as can OPEX reductions in electricity rates. (However, the value may fluctuate according to the conditions such as the number of PV panels installed, the load power consumption of radio equipment, weather/climate, and forecast accuracy, and so on.)

In addition, reducing service outages due to power outages can also reduce the on-site operation costs of maintenance staff.


4.2 Potential revenue creation opportunities

There is no revenue creation since this is a cost reduction solution.

5. Lessons Learned

  • The introduction of Green Base Stations will enable to generate electricity from renewable solar power to supply power to the base station’s radio equipment. Since this can reduce the commercial power use, OPEX for the power rate can be reduced.
  • Since conditions vary depending on the base station, such as the limitation of space for PV panels, the weather (amount of sunlight) throughout a day or a year, the climate of the base station’s location area, and so on, it is necessary to evaluate the introduction effect (power generation and cost) individually.
  • Green Base Stations can be operated independently by PV and batteries in the event of power outage due to disasters, and the mobile phone service, which is the important lifeline, can be provided for a longer time.
  • GSMA recognises that the Green Base Stations can also enable resilient mobile networks that can operate even in the midst of electricity shortage. This would benefit the society and the operator during national crisis/disaster scenarios where electricity is not supplied in a stable manner.

6. Summary

NTT DOCOMO has been conducting research and development on Green Base Stations with the aim of making effective use of renewable energy and extending service hours during power outages. The Green Base Station can supply the power of the radio equipment by the power generation by the PV panels, and realises the base station which is environmentally friendly and disaster resilient. In this document, it is shown experimentally that the smart control of PV power generation and batteries can significantly reduce the use of commercial power. Therefore, it can be said that the OPEX of commercial electric power rates can be also reduced. NTT DOCOMO will continue its efforts to realise sustainable mobile communications services.
