Digital public key certificates play an essential role within the GSMA Consumer, IoT and M2M remote provisioning solutions. This page details the esential certificates existing in the eSIM ecosystems for Consumer, M2M and IoT including GSMA Certificate Issuer (CI), Test Certificates operated by GSMA CI, Test Certificate Issuer Declaration and eIM Certificate Information.

GSMA Certificate Issuer (CI)

Specific requirements for mutual authentication make internet-focussed certificates unsuitable for the GSMA remote provisioning solutions. Instead, specific Public Key Infrastructure (PKIs) are defined for eSIM and M2M remote provisioning. GSMA PKIs enable eUICC and Subscription Management entities to identify and authenticate within the GSMA remote provisioning ecosystems, facilitating security and interoperability.

GSMA PKIs are managed by GSMA Certificate Issuers (CI); organisations recognised by GSMA as Certificate Authorities. GSMA CIs meet defined criteria (GSMA PRD SGP.28) and operate GSMA recognised certificate roots for certificate issuance, in line with the GSMA eUICC PKI Certificate Policy, GSMA PRD SGP.14.

GSMA PKI certificates can be used in eSIM and M2M product that:

Meet the requirements of GSMA’s technical specifications for remote provisioning and
have demonstrated both functional and security compliance to the GSMA specifications.

The GSMA eSIM and M2M compliance processes provide the common means to demonstrate compliance to the specifications and thereby eligibility for a GSMA CI issued certificate.

Click here for more detail on the GSMA eSIM and M2M compliance processes.

Listed GSMA CIs

The following security certification partners are currently listed as GSMA Certificate Issuers:

Organisation	Specifications	CI Contact	CI Website	GSMA Root CI Certificate	CRL Distribution Point
	SGP.01 and SGP.02 All Versions	Email	Visit	Download	n/a
	SGP.21 and SGP.22 Version 2 SGP.21 and SGP.22 Version 3 SGP.31 and SGP.32 Version 1	Email	Visit	Download	Download
	SGP.21 and SGP.22 Version 2 SGP.21 and SGP.22 Version 3 SGP.31 and SGP.32 Version 1	Email	Visit	Download	Version 2 CRL Download Version 3 CRL Download

For further information, or to register an interest in providing PKI infrastructure for Remote SIM Provisioning, please contact the GSMA by sending email to [email protected].

Test Certificates operated by GSMA CI

In addition to operating Live Certificate roots for commercial product, the GSMA CIs also operate Test Certificate roots. These enabling product developers to request Test Certificates for interoperability testing with pre-compliant product.

Apply directly to the CI for Test Certificates using the individual CI contact details above.

Note:

Test certificates are not interoperable with live production certificates.
PKIs from eSIM (consumer) and M2M are not interchangeable, reflecting the different ecosystems.

Consumer: Test Certificate Issuer Declaration

For Consumer, GSMA maintains the Test Certificate Issuer Declarations that consists:

A list of providers which support the test root certificate operated by GSMA CI, along with a list of the services they support using the test root certificate issuer.
A list of alternate self-signed root test certificate issuers, along with SM-DP+ servers that support them.

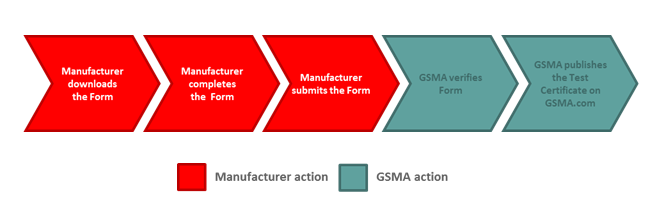

Process to declare the supported Test Certificates

If your company is interested to declare the Test Certificates that are supported. Please complete the Test Certificate Issuer Submission Form and send it to [email protected]

Once GSMA has processed the form, the company will be displayed below with the list of test certificates that its supports.

Test Certificates – Company list

Company Name	Activation Code with GSMA Test CI	Self-Test Certificates – Test Root CI Certificate	Self-Test Certificates Signed Test EUM Certificate	Self-Test Certificates Signed Test SM-DP+ Certificate	Self-Test Certificates- Activation Code	E-mail Contact
TelcoVillage	Activation Code	Test Root CI Certificate Link	Test EUM Certificate Link	Test SM-DP+ Certificate Link	Activation Code Link	NA
RedTea Mobile	Activation Code	Test Root CI Certificate Link	Test EUM Certificate Link	Test SM-DP+ Certificate Link 1 Test SM-DP+ Certificate Link 2 Test SM-DP+ Certificate Link 3	Activation Code Link	Email

Resources

Test Certificate Issuer Submission Form

Key Documents

GSMA eUICC PKI Certificate Policy, SGP.14
eSIM CI Registration Criteria, SGP.28
Remote SIM Provisioning for M2M
Remote SIM Provisioning for Consumer
Test Certificate definition, SGP.26

eUICC IoT Remote Manager – Certificate Information

If your company is interested to declare an TLS/DTLS and ECDSA Certificates used in its eIM products on the market, please send an emall at [email protected]

The table is not intended to list a GSMA eIM Compliant Product but it ONLY lists the Certificate Issuer Name associated to a specific eIM Product regardless of GSMA Compliance Program.

The list of GSMA eIM Compliant product is available for GSMA members only. For futher information on GSMA RSP Compliance Program, please contact [email protected].

eIM Company Name	eIM Product Marketing Name	Certificate Issuer Name	eIM Email Contact

eIM Information on TLS/DTLS and ECDSA Certificates

The list above does not list all the eIM product on the market. This declaration is optional and is issued under the sole responsibility of the RSP Product Vendor named.
